FORM FACTOR | 1.3L chassis |
---|---|
PROCESSOR | Support Cometlake-s LGA1200 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor |
CHIPSET | Intel H410 Express chipset |
MEMORY | 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 2666/2933 MHz |
VIDEO OUTPUT | HDMI 1.4 + DisplayPort, Dual video output 4K playback (Dual channel memory recommended) Integrated in CPU |
AUDIO | Realtek ALC662 High Definition Audio |
ETHERNET | Realtek RTL8111H 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
STORAGE INTERFACE | SATA 6.0Gb/s interface |
ONBOARD CONNECTORS | (1) 4pin fan connector (1) 1x4 pin USB header (1) VGA(For PVG01 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header |

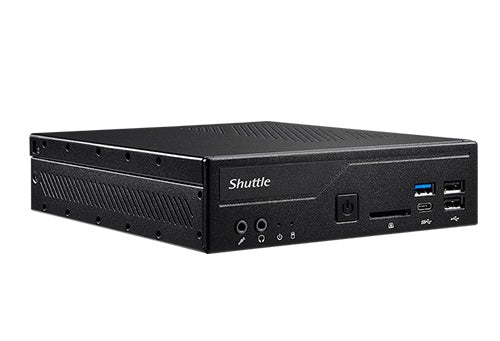

FRONT PANEL | (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (Type C+Type A) (1) Microphone-In (1) Earphone-Out (1) Power button (1) Power LED (1) HDD LED (1) SD Card reader |

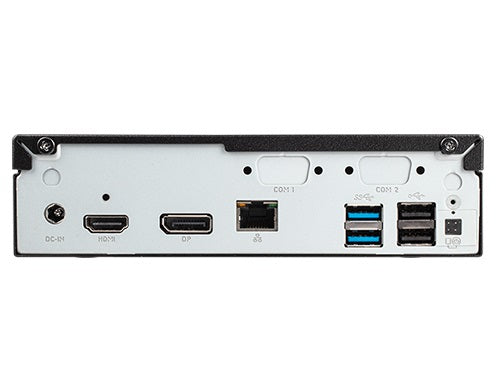

BACK PANEL | (1) RJ45 Gigabit LAN port w/LED (1) HDMI port (1) Display port (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (1) External power on/Clear CMOS header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock |
DRIVE BAYS | (1) 2.5" HDD / SSD bay |
DIMENSIONS | 190(L) x 165(W) x 43(H) mm Dimension drawing |
POWER | 90W Power Adapter Input:100- 240V AC 19V 4.74A DC |
ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver Power cord Thermal Grease HDD Screw pack 90W adapter |
EXPANSION SLOT | (1) M.2 2280/60/42 Type M key socket (1) M.2 2230 Type E key socket |
OS SUPPORT | Windows 10 64 bit O.S |
