Shuttle XPC SH570R6 Rocket lake Cube

$999.99

Price Starting from $999.99

Customize your System Below

QTY:

Custom Multi-Core and Fast Workstation PC for Professional Use

Shuttle’s new SH570R6 adopts an LGA 1200 CPU socket, supports 10th/11th Gen Intel® Core™ processors (up to 125W), as well as dual-channel DDR-3200MHz high-speed memory with up to 128GB to deliver higher performance for professional tasks. The SH570R6 can run smooth 4K UHD content with the integrated Intel®Xe graphics plus drive triple displays from HDMI and DisplayPort outputs. Designed with a compact size, the SH570R6 delivers expandability and connectivity where it matters. It can support a dual-slot graphics card, multiple hard drives & M.2 SSD installation, further with up to twelve USB ports, including one with type-C that make users operate more conveniently and peripherals deployment. With Dual Gigabit LAN built-in and M.2 slot for Wi-Fi module expansion, network connectivity is extensive. The SH570R6 is equipped with an 80 PLUS Bronze certified 300W power supply and Shuttle’s exclusive I.C.E. 2 heat pipe technology for highly energy-efficient and stable long-term operation.
FORM FACTOR Shuttle Form factor
PROCESSOR Support Intel® 10th/11th generation Core™ i3/i5/i7, Pentium®, Celeron®125W LGA1200 CPU
CHIPSET Intel H570 express chipset
MEMORY (4)DDR4 3200 (11th CPU only)MHz / 2933MHz / 2666MHz support, dual channel up to 128GB (32GB*4)
VIDEO OUTPUT (1)HDMI + (2)DisplayPort support triple independent display 4K/60Hz playback
(With Integrated Graphic in CPU)
AUDIO Realtek ALC662/ALC897
5.1 Channel high definition audio
ETHERNET Intel i210AT + i219
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (2)4 Pin fan connector
(4)SATA 6 connector
(1) ATX main power (2*10)
(1) ATX 12V power (2*2)
(1) 1X4 USB 2.0 header
(1) RS232 header
(1) VGA header
(1) Front AUDIO header
(2) Front USB FFC header
FRONT PANEL (3) USB 3.2 Gen 1 Port
(1) USB 3.2 Gen 1 type-C Port
(1) Microphone-In
(1) SPK-Out
(1) Power LED
(1) HDD LED
(1) Power-On button
(1) Power-On button

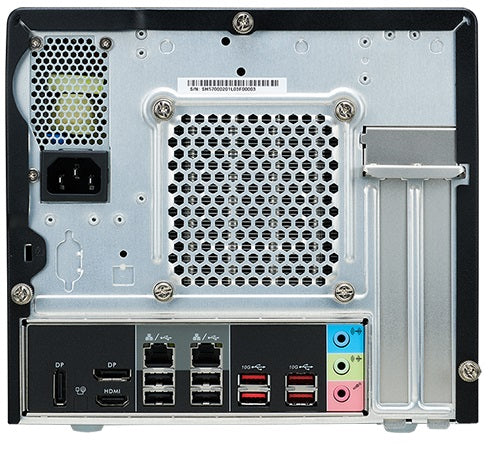

BACK PANEL (4) USB 2.0 Port
(4) USB 3.2 Gen 2 Port
(2)LAN
(1)HDMI port
(2)Display port
(1)Audio Mic in
(1)Audio Line in
(1)Audio SPK out
(1)Clear CMOS button
(3)Antenna Hole
DRIVE BAYS (1) 5.25" ODD bay
(2) 3.5" HDD bay
Support 2.5" HDD x2 or 4, if use accessory PHD3 x1 or 2
DIMENSIONS 332.1(L) x 215.2(W) x 190.1(H) mm
POWER 80 Plus 300W power supply
Input: 100-240V,6-3A AC
Support 80 PLUS Bronze
ACCESSORIES XPC Multi-Language quick guide
XPC DVD Driver
SATA Cable
CPU Thermal Grease
Power cord
Screw package
EXPANSION SLOT (1) PCI-E X16 Gen 4.0 slot
(1) PCI-E X4 Gen 3.0 slot
(1) M.2 2280 type M key socket
(1) M.2 2230 type E key socket
OS SUPPORT Windows 10 64bit
Linux
CERTIFICATION Safety certification : CB , BSMI , cTUVus
EMI certification : FCC , CE , BSMI , RCM , VCCI



For custom components or bulk orders over 10+ systems please email: sales@mysmallpc.com
