Shuttle XPC Slim DH470, 10th Gen Triple Display

$969.99

Price Starting from $969.99

Customize your System Below

QTY:

Robust Multitasking 1 liter PC for Three Displays Powered by Intel 10th Gen Processors

Engineered for the next level of multitasking ability, the DH470 combines Intel 10th Gen LGA1200 Comet Lake 65W CPUs. By integrating UHD graphic, DH470 not only supports three monitors but allow to display 4K video outputs. It also has rich I/Os including 8 x USB 3.2 and 2 x serial ports to connect to customer-desired peripherals. Despite of its slim chassis, there’s still room for dual M.2 expansion cards and support for up to 64GB of DDR4 memory. The DH470 is a perfect choice for a wide range of application, especially digital signage.
FORM FACTOR 1.3L chassis
PROCESSOR Support Cometlake-s LGA1200 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
CHIPSET Intel H470 Express chipset
MEMORY 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 2666/2933 MHz
VIDEO OUTPUT HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC662 High Definition Audio
ETHERNET Intel I210AT*2 Dual Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

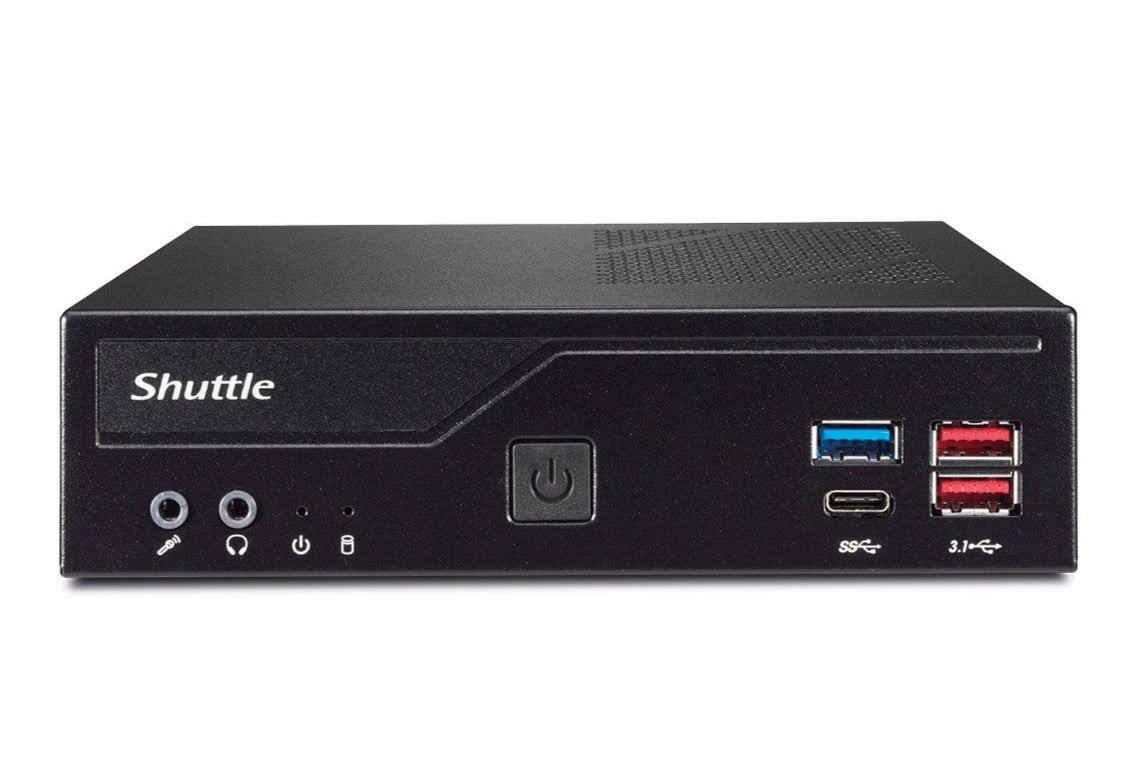

FRONT PANEL (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED

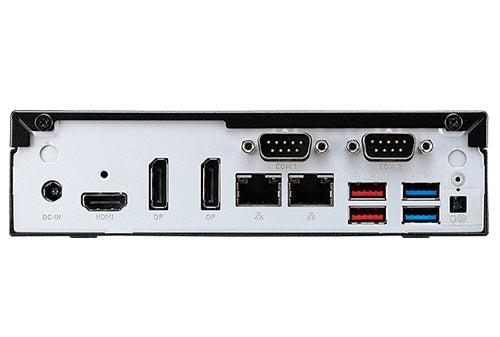

BACK PANEL (2) RJ45 Gigabit LAN port w/LED
(1) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
Dimension drawing
POWER 90W Power Adapter
Input:100- 240V AC
19V 4.74A DC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
90W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 10 64 bit O.S
Linux
REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.


For custom components or bulk orders over 10+ systems please email: sales@mysmallpc.com
